Featured Van: 2019 Toyota HiAce 4WD Campervan Conversion

Inside Toyota Hiace camper with benches and table, looking out to a lake.

This one’s a bit special.

Built on a clean, low-kilometre 4WD HiAce, this full conversion combines comfort, capability, and smart design — ready for life on (or off) the road.

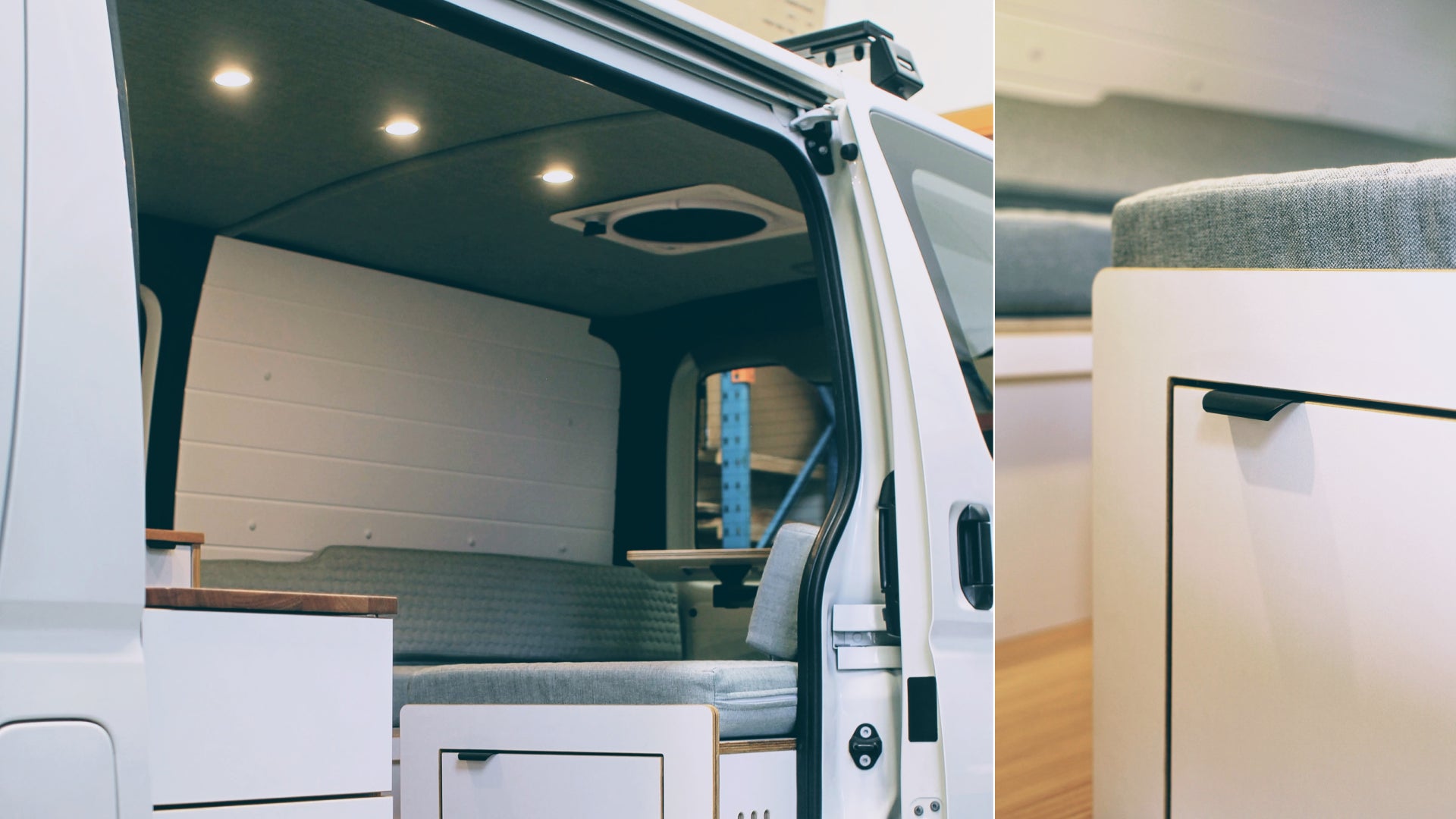

Based on our Traveler layout, the fit-out balances simplicity and function. Inside, you’ll find a beautifully finished space designed for both ease and relaxation. The premium Warwick fabric cushions convert quickly into a full-length bed and, when in day mode, offer a genuinely comfortable space — ideal for relaxing, working on the road, or simply enjoying time inside the van.

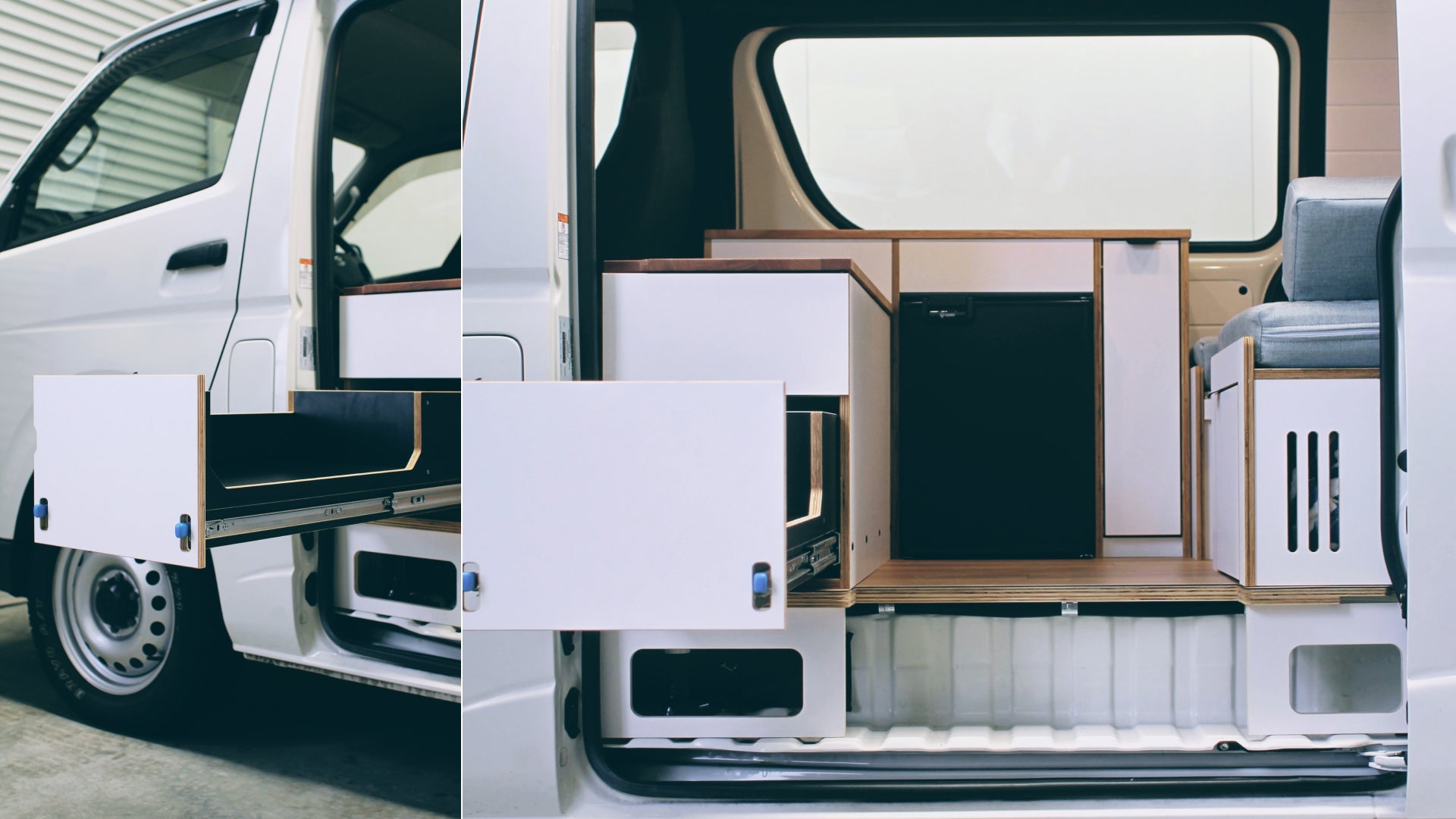

Rear drawers extended from Toyota Hiace camper, showing storage.

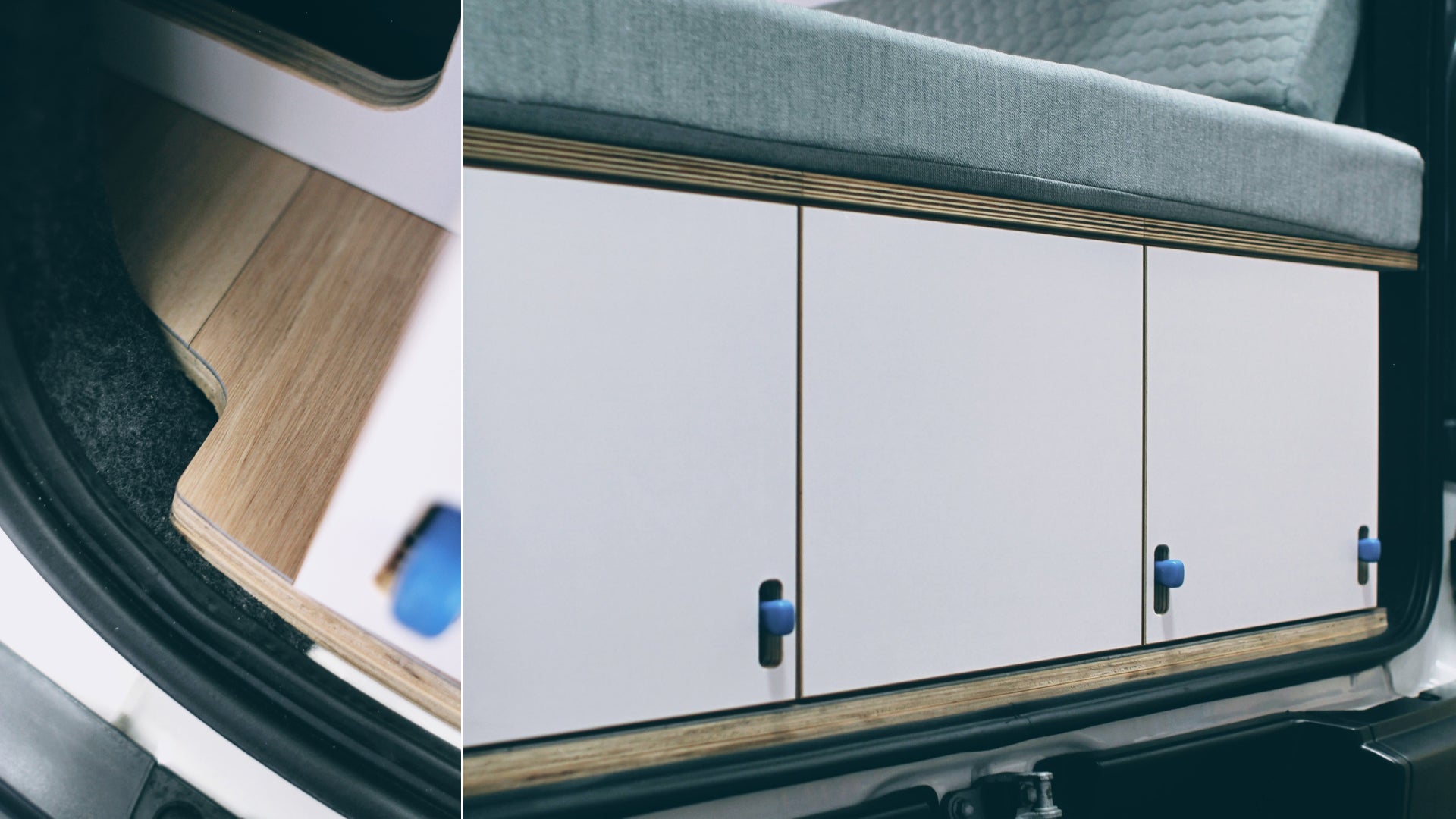

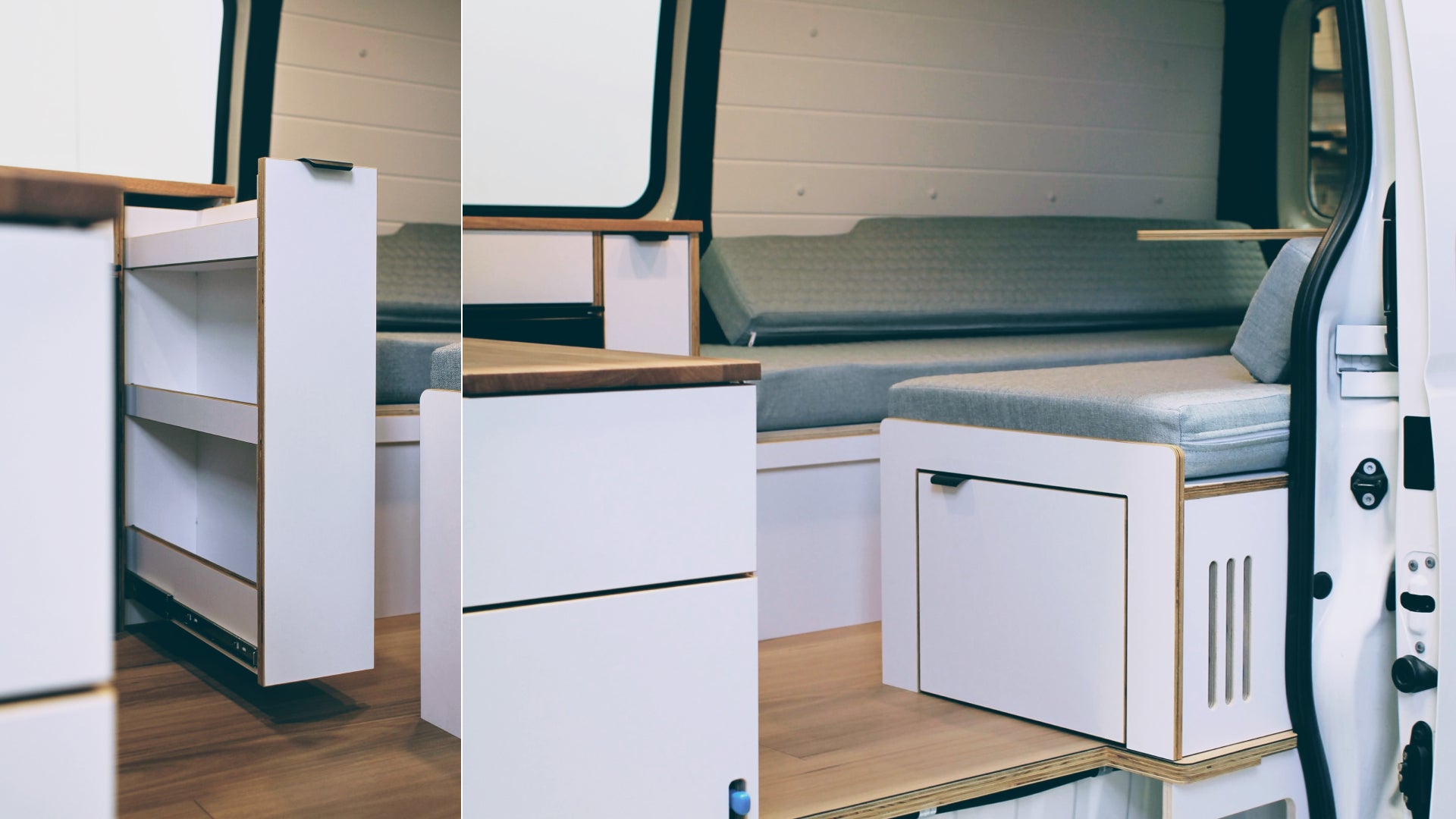

Precision CNC-machined cabinetry makes the most of every millimetre, with two large rear drawers, a pull-out pantry, and generous storage throughout. The cabinetry is crafted from lightweight, durable melamine-faced plywood, paired with select-grade Okoume hardwood benchtops for a warm, natural finish that’s both practical and easy on the eye.

Power comes from a 180W roof-mounted solar panel and a 170Ah lithium battery system, managed by a suite of Victron components that support true simultaneous charging — giving you reliable 12V power wherever the road takes you.

Roof of Toyota Hiace camper with solar panels by a lake at sunset.

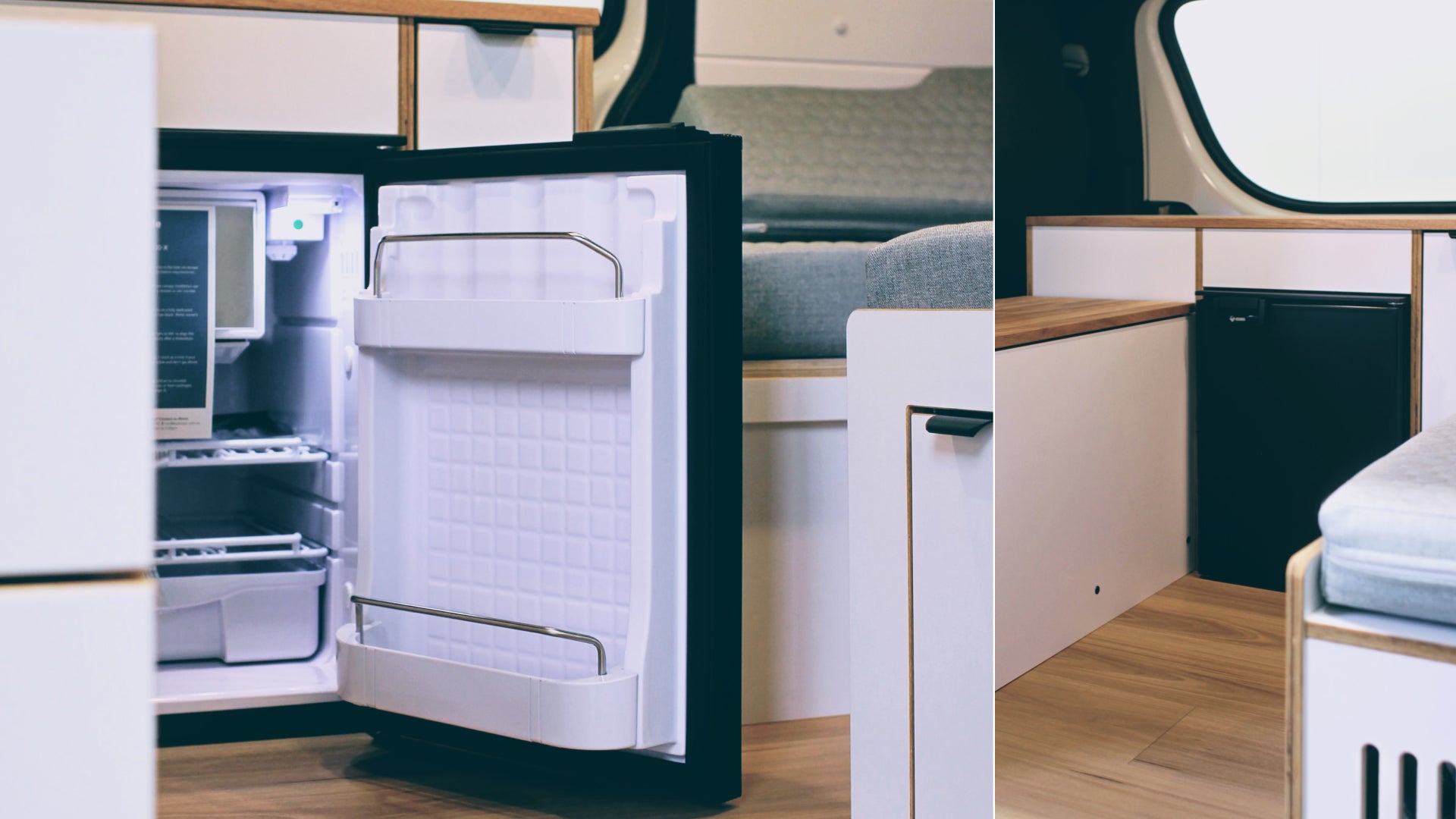

Along the passenger side, a compact pull-out kitchen houses a Gasmate butane cooker, spare gas, and storage for utensils and cooking essentials. Just inside the sliding door, a 50L Bushman fridge is easily accessible — perfect for prepping a quick meal or grabbing a cold drink on the go.

Finished with Blackbutt luxury vinyl plank flooring, full insulation, upgraded wheels, and Maxxis Bravo all-terrains, this HiAce is built for those who value comfort without compromise — whether you’re chasing dirt roads or coastal views.

1 of 5

Toyota HiAce H200 – Traveler Spec Sheet


Vehicle Specifications

Make & Model Toyota HiAce LWB
Year of Manufacture 2019
Odometer Reading ~97,000 km
Engine 2.8L 1GD-FTV Turbo Diesel
Transmission 6-speed Automatic
Drive Type 4WD
Seating Capacity 3

Conversion Specifications

Off-Grid Power System

Leisure Battery Exotronic 170Ah Alpha Lithium
Solar Panel Exotronic 180W Fixed
Solar Charging Victron 12/24V 30A SmartSolar MPPT
DC-DC Charging Victron Orion XS 12/12-50A DC-DC Smart
Monitoring Victron 300A SmartShunt / VictronConnect App
Protection Victron Smart BatteryProtect 12/24V-220A

Appliances & Equipment

Fridge Freezer Bushman 50L DC50-X
Stove Gasmate Butane with Cooking Pan
Shower ONTAP Portable - Black Edition
Toilet Thetford Porta Potti 335
Ventilation MaxxFan Plus 10 speed roof top fan
Lighting Dimmable LED down lights

Interior Lining

Insulation 10mm closed cell thermal/acoustic barrier
Carpet Automotive 4-Way stretch,
Colour: Dark Grey
Floor 12mm F11 structural plywood,
2.5mm Blackbutt luxury vinyl plank
Paneling 6mm lightweight shiplap-style moisture resistant
Ceiling Upholstered lightweight honeycomb,
Fabric: Warwick Gravity,
Colour: Cloud

Cabinetry

Cabinets White melamine faced lightweight plywood
Tops Okoume finger-jointed select grade hardwood
Table Genuine Lagun height-adjustable leg
Hinges BLUM® BLUMOTION Soft Close
Drawer Slides TRUSLIDE® locking 125KG heavy duty

Soft Furnishings

Mattress/Cushions Premium 100mm medium density foam
Upholstery Fabric: Warwick Gravity/Clique,
Colour: Cloud

Exterior Equipment

Roof Rack Front Runner low mount (120mm) load bar kit
Brackets Front Runner (customised)
Wheels Toyota Genuine
Tyres Maxxis Bravo AT771 all-terrain
